Novel methods to confirm successful puncture in endoscopic ultrasound-guided hepaticogastrostomy

Endoscopic ultrasound-guided hepaticogastrostomy (EUS-HGS) is a widely used procedure; however, it is challenging in patients with a nondilated bile duct [1]. Although, the double-wall puncture (Seldinger’s method) can be helpful in such cases ([Fig. 1]), specific methods to confirm successful puncture have not been established [2] [3]. Aspiration of a large amount of bile can lead to bile duct collapse, making guidewire insertion difficult. On the other hand, if contrast agent is injected without recognizing that the puncture has failed, extravasation may occur outside of the bile duct. Herein, we demonstrate the use of two novel methods to confirm successful EUS-HGS puncture ([Video 1]).

Fig. 1 Schema of double-wall puncture showing: a a nondilated bile duct; b double-wall puncture (puncture of both anterior and posterior wall); c pull back of the needle into the bile duct lumen; d subsequent contrast injection and guidewire insertion.

Novel methods, the moving bubble sign and Doppler sign, are demonstrated, which can be helpful to confirm successful puncture in endoscopic ultrasound-guided hepaticogastrostomy.Video 1

Moving bubble sign: Before puncture, an extension tube and a 10-mL syringe were attached to the end of a 19-gauge needle. The tube and needle were filled with contrast agent, with a small number of air bubbles within it ([Fig. 2]). After the double-wall puncture, the physician slowly pulled back the needle tip under ultrasound guidance. When the needle tip appeared to return inside the bile duct, the assistant applied slight negative pressure to the syringe. A successful puncture was confirmed when the air bubbles moved smoothly. If the puncture was unsuccessful, the air bubbles remained stationary. Once this sign had been seen, cholangiography was performed successfully.

Fig. 2 Photograph showing the extension tube filled with contrast agent with a few air bubbles within it that is connected to the end of needle.

Doppler sign: During puncture in EUS-HGS, Doppler imaging was used to avoid accidental puncture of the major vessels. When the assistant created negative pressure after successful puncture, the Doppler signal aligned with the needle ([Fig. 3]). Once this sign had been recognized, cholangiography was successfully performed. The Doppler signal was beneficial to confirm successful puncture when the needle tip visibility was poor.

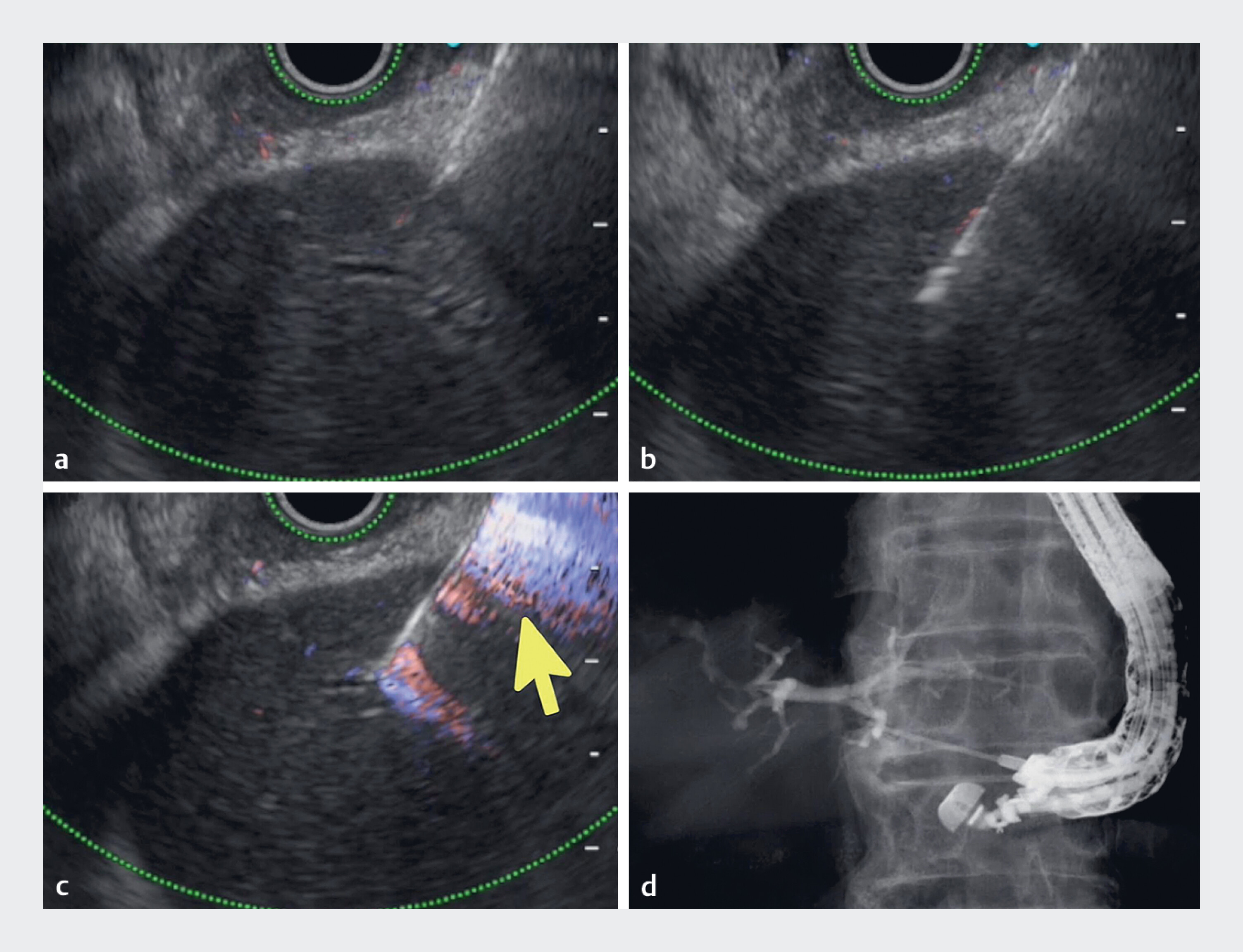

Fig. 3 Images of endoscopic ultrasound-guided hepaticogastrostomy being performed in a patient with a nondilated bile duct showing: a the nondilated bile duct being punctured with a 19-gauge needle; b double-wall puncture being performed; c the Doppler signal aligning with the needle when an assistant creates negative pressure; d cholangiography being successfully performed.

To the best of our knowledge, this is the first report to describe possible methods for confirmation of successful puncture in EUS-HGS. These methods facilitate cholangiography and guidewire manipulation.
