Anterior communicating artery aneurysm clipping: Experience at a tertiary care center with respect to intraoperative rupture

Context: The incidence of anterior communicating artery (Acomm) aneurysm is high and it is associated with high risk of rupture. Aims: The aim is to evaluate various factors (size, wall morphology, and fundus direction) associated with intraoperative rupture (IOR) of Acomm aneurysm. Settings and Design: Retrospective cohort study. Subjects and Methods: Our study includes 25 operated patients diagnosed to have ruptured Acomm aneurysm in the Department of Neurosurgery of Institute of Medical Sciences, Banaras Hindu University, Varanasi, India, between January 2016 and July 2020. Our study included all patients with ruptured Acomm aneurysm who received clipping as method of treatment. Statistical Analysis: Chi-square test was used for analysis. Values with P < 0.05 were considered statistically significant. Statistical tests were done using GraphPad Prism version 8.3.0 software. Results: None of the patients with <4 mm, 6 patients of >4–10 mm, and 2 patients of >10 mm aneurysm size experienced IOR. IOR was seen in 2 patients with smooth wall and 6 in irregular aneurysm wall. All patients with posterior, 1 patient with inferior, 2 patients with anterior, and 1 patient with superior directing aneurysm experienced IOR. Patients with bilaterally clipped A1 experienced no IOR, while in unilaterally clipped aneurysm only 2 patients experienced IOR. Glasgow outcome score was better in patients with no IOR. Conclusion: The factors associated with high risk of IOR are: Aneurysm size >4 mm, multilobulated or irregular aneurysm wall, posteriorly and inferiorly directed aneurysms. Patients in whom Both A1 was temporarily clipped, experienced no IOR and better outcome.

Key-words:

Aneurysm fundus direction - anterior communicating artery aneurysm - Glasgow outcome score - intraoperative rupture - temporary clipping

Introduction

The anterior communicating artery (Acomm) is one of the most common locations for intracranial aneurysm (IA). They account for approximately 10% of unruptured aneurysms,[[1]] and as high as 45% of ruptured aneurysms.[[2]] The Acomm aneurysm is considered to be at increased risk for rupture and therefore necessitates aggressive management.[[3]] Rupture of aneurysm results into subarachnoid hemorrhage (SAH) formation. Rupture of Acomm aneurysm may also produce basal frontal hematoma and intraventricular hemorrhage.

As per the Mayo Clinic (2009) recent research report, the incidence of un-ruptured aneurysms is nearly 2% and the yearly morbidity of SAH caused by rupture of IA is about 60–100/100 thousand people.

The results of international study on unruptured IAs (ISUIA) revealed that Acomm aneurysms of size <7 mm were not found readily as compared to aneurysms of other sites or of a larger size, thus posing the increased risk of rupturing. The data of ISUIA provide statistical corroboration that the Acomm aneurysms of even smaller diameters rupture as compared to aneurysms located elsewhere.[[4]],[[5]],[[6]]

Studies have shown that the anterior and posterior communicating (Pcomm) artery aneurysms have been associated with higher risk of rupture than the middle cerebral artery (MCA) aneurysms. In particular, even smaller (<7 mm) Acomm aneurysms have been shown to have high rupture rate.[[7]],[[8]] These results suggest that alternative factors-such as aneurysmal morphology-strongly correlate with the aneurysm rupture risk. There are the studies that suggest that the relationship between the size of an aneurysm and aneurysm rupture may not be correlated.[[9]],[[10]],[[11]],[[12]],[[13]],[[14]],[[15]],[[16]],[[17]],[[18]],[[19]],[[20]],[[21]],[[22]] Pang et al. found that among all aneurysms, anterior communicating artery aneurysm demonstrates higher frequency of intraoperative rupture (IOR) (30%) as compared to Pcomm (26%) and MCA (18%) aneurysms.[[23]]

Technical advances in instrumentation and operative techniques have brought down the morbidity associated with IA surgery. However, aneurysmal rupture is still a main risk factor that can remarkably affect the patient's prospect for smooth recovery.

In the majority of earlier studies, the aneurysm size was considered the major risk for rupture of aneurysm, suggesting the possibility that other factors associated with aneurysm morphology may have been ignored.

Our study provides a more detailed statistical analysis of the individual and multiple factors affecting rupture of Acomm aneurysm during surgery. Although previously, studies have been conducted that individually examined issues such as aneurysm location, aneurysm morphology, timing of surgery relative to SAH, relationship between fundus direction and IOR, and use of temporary clipping of A1, ours study is the first of its kind to elaborate all these components collectively.

Our study assessed the multiple risk factors which were intimately related to aneurysm rupture during surgery. The identification of these variables can be utilized to take preventive measures to decrease the events of IOR and thus better patient care. In our study, majority of IOR occurred during aneurysm dissection or clip application.

Subjects and Methods

This was a retrospective study conducted at the Department of Neurosurgery, Banaras Hindu University, Varanasi. Data were collected from medical records of the department for January 2016 to July 2020. We reviewed the case of 25 operated patients diagnosed to have ruptured Acomm aneurysm.

Our study included all patients with ruptured Acomm aneurysm who received clipping as method of treatment. Exclusion criteria were: Patient with multiple aneurysms, patients who were hospitalized due to trauma, patients who were diagnosed with IA but did not receive surgical treatment.

We collected data on the following variables at the time of presentation: Age, gender, comorbidities (hypertension, diabetes mellitus, end-stage renal disease [ESRD], and cerebrovascular accident), Glasgow coma scale (GCS), Hunt and Hess Grade, Glasgow outcome score (GOS), and various factors related to Acomm aneurysm morphology.

Three-dimensional computed tomography angiography (CTA) was done in all patients in whom SAH was seen on conventional computed tomography (CT) scan. The morphological details of the aneurysm and circle of Willis were depicted from CT angiography such as size, neck width, wall morphology, and fundus direction.

Statistical analysis

The data were summarized using medians/mean for continuous variables, and counts and percentages for categorical variables. Differences of significance in categorical variables were evaluated using Chi-square test. The data collected were statistically analyzed using GraphPad Prism version 8.0.0 program P < 0.05 was considered statistically significant.

Results

Patient characteristics

The characteristics of patient population are shown in [[Table 1]]. The mean age of patients was 58.1 ± 5.26. Of 25 patients, 10 (40%) were male and 15 (60%) were female. All the patients underwent surgical clipping of the ruptured Acomm aneurysm.

Table 1: Patient characteristics (n=25)

GCS at the time of presentation varied from 3 to 15 with mean of 12.5 ± 2.4. Patients with Hunt and Hess Grade 1, 2, and 3 consisted of 24%, 40%, and 24%, respectively, 8% were in grade 4 and 4% in grade 5. The presenting complaint was headache (76%), altered sensorium (52%), and seizures (16%).

Most of the patients (13) were operated after 14 days of presentation due to either poor Hunt and Hess grades or hemodynamic instability, unwillingness for surgery or some medical causes. Ten patients were operated within 3 days of presentation and only 2 patients were operated in 4–14 days duration, one on 5th and other on 12th day.

Three-dimensional computed tomography angiography findings

CTA findings are summarized in [[Table 2]]. Patients in whom unilateral and bilateral A1 visualized were 8 and 17, respectively. A2 was visualized unilaterally in 1 patient and bilaterally in 24 patients. However, A1 and A2 of both sides were found intraoperatively in all cases. Unilateral nonvisualization of A1 or A2 in few cases in preoperative CTA may be due to vasospasm.

Table 2: Computed tomography angiography findings (n=25)

Aneurysm morphology

Various morphological characteristics of Acomm aneurysm and its correlation with respect to rupture are depicted in [[Table 3]].

Table 3: Aneurysm characteristics (with respect to intraoperative rupture) (n=25)

Aneurysm neck width was classified into <4 mm or ≥4 mm sizes. Only one patient with neck width <4 mm experienced IOR, while 7 patients experienced IOR with neck width ≥4 mm and this difference was statistically not significant.

Aneurysmal dome size was divided into three categories: <4 mm (n = 8), >4–10 mm (n = 14) and >10 mm (n = 3). None of the patients of <4 mm size aneurysm experienced IOR, while 6 patients of >4–10 mm size category and 2 patients of >10 mm size category experienced IOR and this correlation came to be significant (P = 0.0455).

Aneurysmal wall was simple or smooth in 17 patients and multilobed or irregular in 8 patients. IOR was seen in only 2 patients with smooth wall while 6 in irregular aneurysm wall and this difference was statistically significant (P = 0.0016).

Aneurysm direction was classified into anterior, superior, posterior, and inferior based on CTA and intraoperative findings. In our study, 11 patients were having anterior projecting aneurysms, 8 patients had superior, 4 had posterior, and 2 patients had inferior projecting aneurysms. All patients with posterior and 1 patient with inferior directing aneurysms experienced IOR. While IOR was seen in 2 patients with anterior and only 1 patient with superior directing aneurysms, these differences in IOR were found to have statistical significance (P = 0.0008).

In our study, proximal A1 was clipped bilaterally in 6 patients, unilaterally in 11 patients and no clipping was done in 8 patients. Patients with bilaterally clipped A1 experienced no IOR, while in unilaterally clipped aneurysm only 2 patients experienced IOR. In patients with no proximal clipping of A1, 6 out of 8 patients experienced IOR and these values were statistically significant (P = 0.0050) on correlation.

Risk of aneurysm rupture

Risk factors and comorbidities are enlisted in [[Table 4]]. In our study, 1 patient belonged to age group <20 years, 4 patients from ≥20 to 39 years of age group, 10 patients from ≥40 to 59 years of age group, and 10 patients from ≥ 60 years of age group. Most of the IOR was seen in ≥60 (4 patients) years of age group followed by ≥40–59 (3 IOR) years of age group. IOR was seen in only 1 patient from ≥20 to 39 years of age group. Although correlation these findings were not significant.

Table 4: Risk of intraoperative aneurysm rupture (n=25)

Intraoperative aneurysm rupture was seen in 2 male patients and 6 female patients out of 10 male and 15 female patients respectively but these data were found to be nonsignificant.

In our study, 17 (68%) patients were hypertensives, 6 (24%) were diabetic. Three (12%) patients had previous history of CVA and 2 (8%) had ESRD. IOR was seen in 5 patients with hypertension, 2 patients with diabetes, 1 patient with CVA, and 1 patient with ESRD, although these values were nonsignificant on correlation with respect to IOR.

Surgical outcome

Postsurgical outcome was measured in the form of GOS. GOS was better in patients in whom no IOR was seen. GOS 5 was seen in nine patients and all of them belonged to the group in which no IOR was seen. GOS 1 and 2 was seen in two patients and all of them (100%) belonged to IOR group. GOS 4 was seen in nine patients and eight of them (88.89%) belonged to group with no IOR. GOS 3 was seen in three patients and all of them (100%) had experienced IOR. These values were statistically significant (P = 0.0003).

Correlation between time of surgery and IOR

This correlation has been shown in [[Table 5]]. Only 2 patients (out of 10) experienced IOR, who were operated within 3 days of presentation. Only 2 patients were operated in 4–14 days' duration and none experienced IOR. Most of the patients were operated in >14 days' duration (13) and six of them had episodes of IOR. Although this correlation was not significant.

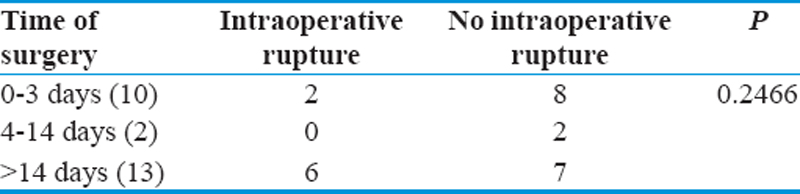

Table 5: Correlation between time of surgery and intraoperative rupture

Discussion

In this study, we have emphasized on the multiple anatomical and structural features of Acomm aneurysms. We have attempted to extract the conclusive data to answer the pressing questions for the future and continued effort to improve clinical management of ruptured IAs.

In our study, male:female ratio was 2:3 with female preponderance and mean age was 58.1. Chee et al. found almost similar results with 42.9% males, 57.1% females and mean age 51 ± 11.82 years.[[24]]

Aneurysm morphological analysis

There is no doubt that the risk of aneurysm rupture is high for large sized aneurysms. Pang et al. found that the risk of rupture tended to increase as the size of the IA increased.[[23]]

Conservatively managed patients and those with no aneurysmal bleed were not included in this study. We have correlated various factors with respect to IOR in Acomm aneurysm with presentation as SAH and we found that most of IOR is seen in large sized aneurysm and with increasing size, incidence of IOR increased.

We also found that IOR was found to be significantly associated with aneurysm wall morphology. IOR was seen more in multilobulated as compared to simple and smooth walled aneurysm. No study on IOR could be retrieved in literature with regard to wall morphology. Myeong et al. found in his study that smooth aneurysm wall was observed in 38 aneurysms (44%) in the ruptured group and 25 aneurysms (57%) in the unruptured group. Patients with irregular walled aneurysm resulted into 48 (56%) ruptured and 19 (43%) unruptured cases; thus, it can be inferred that smooth wall was more frequently associated with unruptured than with ruptured aneurysms (57% vs. 44%).[[25]]

In our study, we observed that patients with aneurysm fundus directed posteriorly, experienced 100% IOR. Only 2 patients (out of 11) with anterior and 1 patient (out of 8) with superior directed fundus showed IOR. Although Matsukawa et al. found that an anterior direction of the aneurysm dome around the Acomm aneurysm was related to high rupture rate,[[26]] it is different from our study because our study includes aneurysm rupture while operating only.

In our study, we found that patients in whom proximal clipping of both A1 was done, none experienced IOR, while out of those who did not underwent proximal clipping many had IOR.

PKH Pang et al. also found that the use of elective temporary clipping is associated with a significant reduction of the IOR rate (from 25.86% to 7.89%) and a better patient outcome.[[27]]

We also found that patients who experienced IOR were undoubtedly associated with poor GOS when compared to aneurysm without IOR and this difference was statistically significant.

Conclusion

From our study, we conclude that various factors remarkably associated with increased risk of IOR are: Aneurysm size >4 mm, multilobulated or irregular aneurysm wall, posteriorly and/or inferiorly directed aneurysms. We encourage temporary clipping of both A1 in Acomm aneurysms as there is less chance of IOR and better outcome.

Although the incidence of IOR may never be completely abolished by identifying the various risk factors responsible for IOR, the surgeon can anticipate and be better prepared to deal with it. We should be very generous while handling aneurysm to avoid rupture because IOR has poor outcome. Furthermore, a better comprehensive knowledge of the factors associated with IOR of Acomm aneurysm can allow us for a better approach in the surgical decision-making process.

Conflict of Interest

There are no conflicts of interest.

Financial support and sponsorship

Nil.

• References

• 1 Wiebers DO, Whisnant JP, Huston J 3rd, Meissner I, Brown RD Jr., Piepgras DG, et al. Unruptured intracranial aneurysms: Natural history, clinical outcome, and risks of surgical and endovascular treatment. Lancet 2003;362:103-10.
• 2 Molyneux A, Kerr R, Stratton I, Sandercock P, Clarke M, Shrimpton J, et al. International Subarachnoid Aneurysm Trial (ISAT) of neurosurgical clipping versus endovascular coiling in 2143 patients with ruptured intracranial aneurysms: A randomised trial. Lancet 2002;360:1267-74.
• 3 Greving JP, Wermer MJ, Brown RD Jr., Morita A, Juvela S, Yonekura M, et al. Development of the PHASES score for prediction of risk of rupture of intracranial aneurysms: A pooled analysis of six prospective cohort studies. Lancet Neurology 2014;13: 59-66.
• 4 Bijlenga P, Ebeling C, Jaegersberg M, Summers P, Rogers A, Waterworth A, et al. Risk of rupture of small anterior communicating artery aneurysms is similar to posterior circulation aneurysms. Stroke 2013;44:3018-26.
• 5 Hoh BL, Sistrom CL, Firment CS, Fautheree GL, Velat GJ, Whiting JH, et al. Bottleneck factor and height-width ratio: Association with ruptured aneurysms in patients with multiple cerebral aneurysms. Neurosurgery 2007;61:716-22.
• 6 International Study of Unruptured Intracranial Aneurysms Investigators. Unruptured intracranial aneurysms–risk of rupture and risks of surgical intervention. N Engl J Med 1998;339:1725-33.
• 7 Kashiwazaki D, Kuroda S, Sapporo SAH Study Group. Size ratio can highly predict rupture risk in intracranial small (<5 mm) aneurysms. Stroke 2013;44:2169-73.
• 8 UCAS Japan Investigators, Morita A, Kirino T, Hashi K, Aoki N, Fukuhara S, et al. The natural course of unruptured cerebral aneurysms in a Japanese cohort. N Engl J Med 2012;366:2474-82.
• 9 Castro MA, Putman CM, Cebral JR. Computational fluid dynamics modeling of intracranial aneurysms: Effects of parent artery segmentation on intra-aneurysmal hemodynamics. AJNR Am J Neuroradiol 2006;27:1703-9.
• 10 Castro MA, Putman CM, Sheridan MJ, Cebral JR. Hemodynamic patterns of anterior communicating artery aneurysms: A possible association with rupture. AJNR Am J Neuroradiol 2009;30:297-302.
• 11 Cebral JR, Sheridan M, Putman CM. Hemodynamics and bleb formation in intracranial aneurysms. AJNR Am J Neuroradiol 2010;31:304-10.
• 12 Chien A, Sayre J, Viñuela F. Comparative morphological analysis of the geometry of ruptured and unruptured aneurysms. Neurosurgery 2011;69:349-56.
• 13 Clarke M. Systematic review of reviews of risk factors for intracranial aneurysms. Neuroradiology 2008;50:653-64.
• 14 Dhar S, Tremmel M, Mocco J, Kim M, Yamamoto J, Siddiqui AH, et al. Morphology parameters for intracranial aneurysm rupture risk assessment. Neurosurgery 2008;63:185-96.
• 15 Karmonik C, Yen C, Grossman RG, Klucznik R, Benndorf G. Intra-aneurysmal flow patterns and wall shear stresses calculated with computational flow dynamics in an anterior communicating artery aneurysm depend on knowledge of patient-specific inflow rates. Acta Neurochir (Wien) 2009;151:479-85.
• 16 Ma D, Tremmel M, Paluch RA, Levy EI, Meng H, Mocco J. Size ratio for clinical assessment of intracranial aneurysm rupture risk. Neurol Res 2010;32:482-6.
• 17 Matsukawa H, Fujii M, Akaike G, Uemura A, Takahashi O, Niimi Y, et al. Morphological and clinical risk factors for posterior communicating artery aneurysm rupture. J Neurosurg 2014;120:104-10.
• 18 Ohashi Y, Horikoshi T, Sugita M, Yagishita T, Nukui H. Size of cerebral aneurysms and related factors in patients with subarachnoid hemorrhage. Surg Neurol 2004;61:239-45.
• 19 Rahman M, Smietana J, Hauck E, Hoh B, Hopkins N, Siddiqui A, et al. Size ratio correlates with intracranial aneurysm rupture status: A prospective study. Stroke 2010;41:916-20.
• 20 Szikora I, Paal G, Ugron A, Nasztanovics F, Marosfoi M, Berentei Z, et al. Impact of aneurysmal geometry on intraaneurysmal flow: A computerized flow simulation study. Neuroradiology 2008;50:411-21.
• 21 Tremmel M, Dhar S, Levy EI, Mocco J, Meng H. Influence of intracranial aneurysm-to-parent vessel size ratio on hemodynamics and implication for rupture: Results from a virtual experimental study. Neurosurgery 2009;64:622-30.
• 22 Wermer MJ, van der Schaaf IC, Algra A, Rinkel GJ. Risk of rupture of unruptured intracranial aneurysms in relation to patient and aneurysm characteristics: An updated meta-analysis. Stroke 2007;38:1404-10.
• 23 Pang P, Chan K, Zhu X, Datta N, Rehman S, Aung T, et al. Use of elective temporary clips in preventing intraoperative cerebral aneurysm rupture. Ann Coll Surg Hong Kong 2004;8:44-8.
• 24 Chee LC, Siregar JA, Ghani ARI, Idris Z, Rahman Mohd NAA. The Factors Associated with Outcomes in Surgically Managed Ruptured Cerebral Aneurysm. Malays J Med Sci 2018;25:32-41.
• 25 Kim MC, Hwang SK. The Rupture Risk of Aneurysm in the Anterior Communicating Artery: A Single Center Study. Journal of Cerebrovascular and Endovascular Neurosurgery 2017;19:36-43.
• 26 Matsukawa H, Uemura A, Fujii M, Kamo M, Takahashi O, Sumiyoshi S. Morphological and clinical risk factors for the rupture of anterior communicating artery aneurysms. J Neurosurg 2013;118:978-83.
• 27 Pang PK, Chan KY, Zhu XL, Datta NN, Rehman SU, Aung TH, et al. Ann Coll Surg H K 2004;8:44-8.
