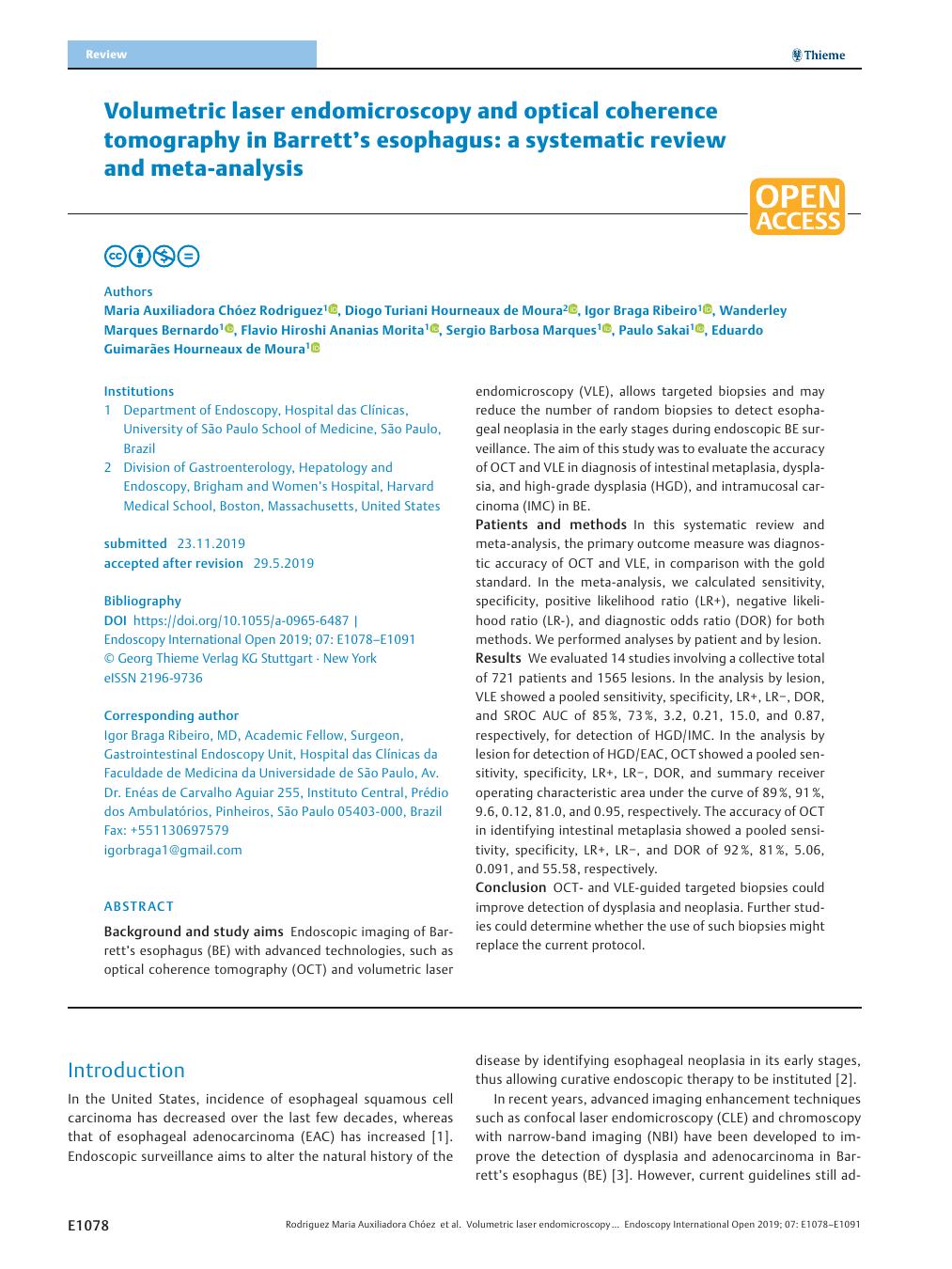

Volumetric laser endomicroscopy and optical coherence tomography in Barrett’s esophagus: a systematic review and meta-analysis

Maria Auxiliadora Chóez Rodriguez 
1   Department of Endoscopy, Hospital das Clínicas, University of São Paulo School of Medicine, São Paulo, Brazil
,
Diogo Turiani Hourneaux de Moura 
2   Division of Gastroenterology, Hepatology and Endoscopy, Brigham and Women’s Hospital, Harvard Medical School, Boston, Massachusetts, United States
,
Igor Braga Ribeiro 
1   Department of Endoscopy, Hospital das Clínicas, University of São Paulo School of Medicine, São Paulo, Brazil
,
Wanderley Marques Bernardo 
1   Department of Endoscopy, Hospital das Clínicas, University of São Paulo School of Medicine, São Paulo, Brazil
,
Flavio Hiroshi Ananias Morita 
1   Department of Endoscopy, Hospital das Clínicas, University of São Paulo School of Medicine, São Paulo, Brazil
,
Sergio Barbosa Marques 
1   Department of Endoscopy, Hospital das Clínicas, University of São Paulo School of Medicine, São Paulo, Brazil
,
Paulo Sakai 
1   Department of Endoscopy, Hospital das Clínicas, University of São Paulo School of Medicine, São Paulo, Brazil
,
Eduardo Guimarães Hourneaux de Moura 
1   Department of Endoscopy, Hospital das Clínicas, University of São Paulo School of Medicine, São Paulo, Brazil
› Institutsangaben
Weitere Informationen

Publikationsverlauf

submitted 23. November 2019

accepted after revision 29. Mai 2019

Publikationsdatum:
29. August 2019 (online)

Auch verfügbar auf
   Lizenzen und Reprints

Abstract

Background and study aims Endoscopic imaging of Barrett’s esophagus (BE) with advanced technologies, such as optical coherence tomography (OCT) and volumetric laser endomicroscopy (VLE), allows targeted biopsies and may reduce the number of random biopsies to detect esophageal neoplasia in the early stages during endoscopic BE surveillance. The aim of this study was to evaluate the accuracy of OCT and VLE in diagnosis of intestinal metaplasia, dysplasia, and high-grade dysplasia (HGD), and intramucosal carcinoma (IMC) in BE.

Patients and methods In this systematic review and meta-analysis, the primary outcome measure was diagnostic accuracy of OCT and VLE, in comparison with the gold standard. In the meta-analysis, we calculated sensitivity, specificity, positive likelihood ratio (LR+), negative likelihood ratio (LR-), and diagnostic odds ratio (DOR) for both methods. We performed analyses by patient and by lesion.

Results We evaluated 14 studies involving a collective total of 721 patients and 1565 lesions. In the analysis by lesion, VLE showed a pooled sensitivity, specificity, LR+, LR−, DOR, and SROC AUC of 85 %, 73 %, 3.2, 0.21, 15.0, and 0.87, respectively, for detection of HGD/IMC. In the analysis by lesion for detection of HGD/EAC, OCT showed a pooled sensitivity, specificity, LR+, LR−, DOR, and summary receiver operating characteristic area under the curve of 89 %, 91 %, 9.6, 0.12, 81.0, and 0.95, respectively. The accuracy of OCT in identifying intestinal metaplasia showed a pooled sensitivity, specificity, LR+, LR−, and DOR of 92 %, 81 %, 5.06, 0.091, and 55.58, respectively.

Conclusion OCT- and VLE-guided targeted biopsies could improve detection of dysplasia and neoplasia. Further studies could determine whether the use of such biopsies might replace the current protocol.



  • References

  • 1 Pohl H, Welch HG. The role of overdiagnosis and reclassification in the marked increase of esophageal adenocarcinoma incidence. J Natl Cancer Inst 2005; 97: 142-146
    CrossrefPubMedGoogle Scholar
  • 2 Shaheen NJ, Falk GW, Iyer PG. et al. ACG Clinical Guideline: diagnosis and management of Barrett’s esophagus. Am J Gastroenterol 2016; 111: 30-50 ; quiz 51
    CrossrefPubMedGoogle Scholar
  • 3 Thosani N, Abu Dayyeh BK. et al. ASGE Technology Committee systematic review and meta-analysis assessing the ASGE Preservation and Incorporation of valuable endoscopic innovations thresholds for adopting real-time imaging-assisted endoscopic targeted biopsy during endoscopic surveillance. Gastrointest Endosc 2016; 83: 684-698.e7
    CrossrefPubMedGoogle Scholar
  • 4 Sharma P, Brill J, Canto M. et al. White paper AGA: advanced imaging in Barrett’s esophagus. Clin Gastroenterol Hepatol 2015; 13: 2209-2218
    CrossrefPubMedGoogle Scholar
  • 5 Tearney GJ, Brezinski ME, Bouma BE. et al. In vivo endoscopic optical biopsy with optical coherence tomography. Science 1997; 276: 2037-2039
    CrossrefPubMedGoogle Scholar
  • 6 Sivak MV, Kobayashi K, Izatt JA. et al. High-resolution endoscopic imaging of the GI tract using optical coherence tomography. Gastrointest Endosc 2000; 51: 474-479
    CrossrefPubMedGoogle Scholar
  • 7 Tsai T-H, Lee H-C, Ahsen OO. et al. Ultrahigh speed endoscopic optical coherence tomography for gastroenterology. Biomed Opt Express 2014; 5: 4387-4404
    CrossrefPubMedGoogle Scholar
  • 8 Aguirre AD, Chen Y, Bryan B. et al. Cellular resolution ex vivo imaging of gastrointestinal tissues with optical coherence microscopy. J Biomed Opt 2010; 15: 016025
    CrossrefPubMedGoogle Scholar
  • 9 Tsai T-H, Zhou C, Tao YK. et al. Structural markers observed with endoscopic 3-dimensional optical coherence tomography correlating with Barrett’s esophagus radiofrequency ablation treatment response (with videos). Gastrointest Endosc 2012; 76: 1104-1112
    CrossrefPubMedGoogle Scholar
  • 10 Wolfsen HC. Volumetric laser endomicroscopy in patients with Barrett esophagus. Gastroenterol Hepatol (NY) 2016; 12: 719-722
    PubMedGoogle Scholar
  • 11 Suter MJ, Gora MJ, Lauwers GY. et al. Esophageal-guided biopsy with volumetric laser endomicroscopy and laser cautery marking: a pilot clinical study. Gastrointest Endosc 2014; 79: 886-896
    CrossrefPubMedGoogle Scholar
  • 12 Kohli DR, Schubert ML, Zfass AM. et al. Performance characteristics of optical coherence tomography in assessment of Barrett’s esophagus and esophageal cancer: systematic review. Dis esophagus Off J Int Soc Dis Esophagus 2017; 30: 1-8
    PubMedGoogle Scholar
  • 13 Whiting PF, Rutjes AWS, Westwood ME. et al. QUADAS-2: a revised tool for the quality assessment of diagnostic accuracy studies. Ann Intern Med 2011; 155: 529-536
    Google Scholar
  • 14 Higgins JPT, Thompson SG, Deeks JJ. et al. Measuring inconsistency in meta-analyses. BMJ 2003; 327: 557-560
    CrossrefPubMedGoogle Scholar
  • 15 Kamboj AK, Kahn A, Wolfsen HC. et al. Volumetric laser endomicroscopy interpretation and feature analysis in dysplastic Barrett’s esophagus. J Gastroenterol Hepatol 2018; 33: 1761-1765
    CrossrefPubMedGoogle Scholar
  • 16 Smith MS, Cash BD, Trindade AJ. Dysplasia suggested by suspicious findings on volumetric laser endomicroscopy may be detected on initial or follow-up endoscopy. Gastrointest Endosc 2017; 85: AB78
    PubMedGoogle Scholar
  • 17 Cash BD, Joshi V, Wolfsen HC. et al. Absence of suspicious findings on volumetric laser endomicroscopy strongly predicts histopathologic complete remission of dysplasia and intestinal metaplasia in patients after visual eradication of Barrett’s esophagus. Gastrointest Endosc 2016; 83: AB123
    PubMedGoogle Scholar
  • 18 Hatta W, Uno K, Koike T. et al. Feasibility of optical coherence tomography for the evaluation of Barrett’s mucosa buried underneath esophageal squamous epithelium. Dig Endosc 2016; 28: 427-433
    CrossrefPubMedGoogle Scholar
  • 19 Swager AF, Boerwinkel DF, De Bruin DM. et al. Detection of buried Barrett’s glands after radiofrequency ablation with volumetric laser endomicroscopy. Gastrointest Endosc 2016; 83: 80-86
    CrossrefPubMedGoogle Scholar
  • 20 Swager A-F, de Groof AJ, Meijer SL. et al. Feasibility of laser marking in Barrett’s esophagus with volumetric laser endomicroscopy: first-in-man pilot study. Gastrointest Endosc 2017; 86: 464-472
    CrossrefPubMedGoogle Scholar
  • 21 Lee HC, Ahsen OO, Liang K. et al. Endoscopic optical coherence tomography angiography microvascular features associated with dysplasia in Barrett’s esophagus (with video). Gastrointest Endosc 2017; 86: 476-484.e3
    CrossrefPubMedGoogle Scholar
  • 22 Trindade AJ, George BJ, Berkowitz J. et al. Volumetric laser endomicroscopy can target neoplasia not detected by conventional endoscopic measures in long segment Barrett’s esophagus. Endosc Int open 2016; 4: E318-22
    Artikel in Thieme ConnectPubMedGoogle Scholar
  • 23 Benjamin T, Shakya S, Thota PN. Feasibility of volumetric laser endomicroscopy in Barrett’s esophagus with dysplasia and in post-ablation surveillance. J Gastrointestin Liver Dis 2016; 25: 407-408
    PubMedGoogle Scholar
  • 24 Chen Y, Aguirre AD, Hsiung PL. et al. Ultrahigh resolution optical coherence tomography of Barrett’s esophagus: preliminary descriptive clinical study correlating images with histology. Endoscopy 2007; 399: 599-605
    Artikel in Thieme ConnectPubMedGoogle Scholar
  • 25 Evans JA, Bouma BE, Bressner J. et al. Identifying intestinal metaplasia at the squamocolumnar junction by using optical coherence tomography. Gastrointest Endosc 2007; 65: 50-56
    CrossrefPubMedGoogle Scholar
  • 26 Poneros JM, Brand S, Bouma BE. et al. Diagnosis of specialized intestinal metaplasia by optical coherence tomography. Gastroenterology 2001; 120: 7-12
    CrossrefPubMedGoogle Scholar
  • 27 Leggett CL, Chan DK, Gorospe EC. et al. Tu1542 diagnostic performance of in-vivo volumetric laser endomicroscopy for detection of Barrett’s esophagus dysplasia. Gastrointest Endosc 2015; 81: AB502
    PubMedGoogle Scholar
  • 28 Swager AF, Tearney GJ, Leggett CL. et al. Identification of volumetric laser endomicroscopy features predictive for early neoplasia in Barrett’s esophagus using high-quality histological correlation. Gastrointest Endosc 2017; 85: 918-926.e7
    CrossrefPubMedGoogle Scholar
  • 29 Han J, Tsujino T, Samarasena JB. et al. Tu1143 correlation of volumetric laser endomicroscopy (VLE with histology in patients with Barrett’s esophagus and associated dysplasia: Does VLE add value to endoscopy?. Gastrointest Endosc 2016; 83: AB551-AB552
    PubMedGoogle Scholar
  • 30 Konda VJ, Navaneethan U, McKinley M. et al. Sa1263 volumetric laser endomicroscopy identifies suspicious areas missed on white light endoscopy during surveillance of non-treated Barrett’s esophagus. Gastroenterology 2016; 150: S261
    PubMedGoogle Scholar
  • 31 Leggett CL, Gorospe EC, Chan DK. et al. Comparative diagnostic performance of volumetric laser endomicroscopy and confocal laser endomicroscopy in the detection of dysplasia associated with Barrett’s esophagus. Gastrointest Endosc 2016; 83: 880-888.e2
    CrossrefPubMedGoogle Scholar
  • 32 Swager AF, van der Sommen F, Klomp SR. et al. Computer-aided detection of early Barrett’s neoplasia using volumetric laser endomicroscopy. Gastrointest Endosc 2017; 86: 839-846
    CrossrefPubMedGoogle Scholar
  • 33 Isenberg G, Sivak MV, Chak A. et al. Accuracy of endoscopic optical coherence tomography in the detection of dysplasia in Barrett’s esophagus: A prospective, double-blinded study. Gastrointest Endosc 2005; 62: 825-831
    CrossrefPubMedGoogle Scholar
  • 34 Evans JA, Poneros JM, Bouma BE. et al. Optical coherence tomography to identify intramucosal carcinoma and high-grade dysplasia in Barrett’s esophagus. Clin Gastroenterol Hepatol 2006; 4: 38-43
    CrossrefPubMedGoogle Scholar
  • 35 Chak A, Wallace MB, Poneros JM. Optical coherence tomography of Barrett’s esophagus. Endoscopy 2005; 37: 587-590
    Artikel in Thieme ConnectPubMedGoogle Scholar
  • 36 Alshelleh M, Inamdar S, McKinley M. et al. Incremental yield of dysplasia detection in Barrett’s esophagus using volumetric laser endomicroscopy with and without laser marking compared with a standardized random biopsy protocol. Gastrointest Endosc 2018; 88: 35-42
    CrossrefPubMedGoogle Scholar
  • 37 van der Sommen F, Klomp SR, Swager A-F. et al. Predictive features for early cancer detection in barrett’s esophagus using volumetric laser endomicroscopy. Comput Med Imaging Graph 2018; 67: 9-20
    CrossrefPubMedGoogle Scholar
