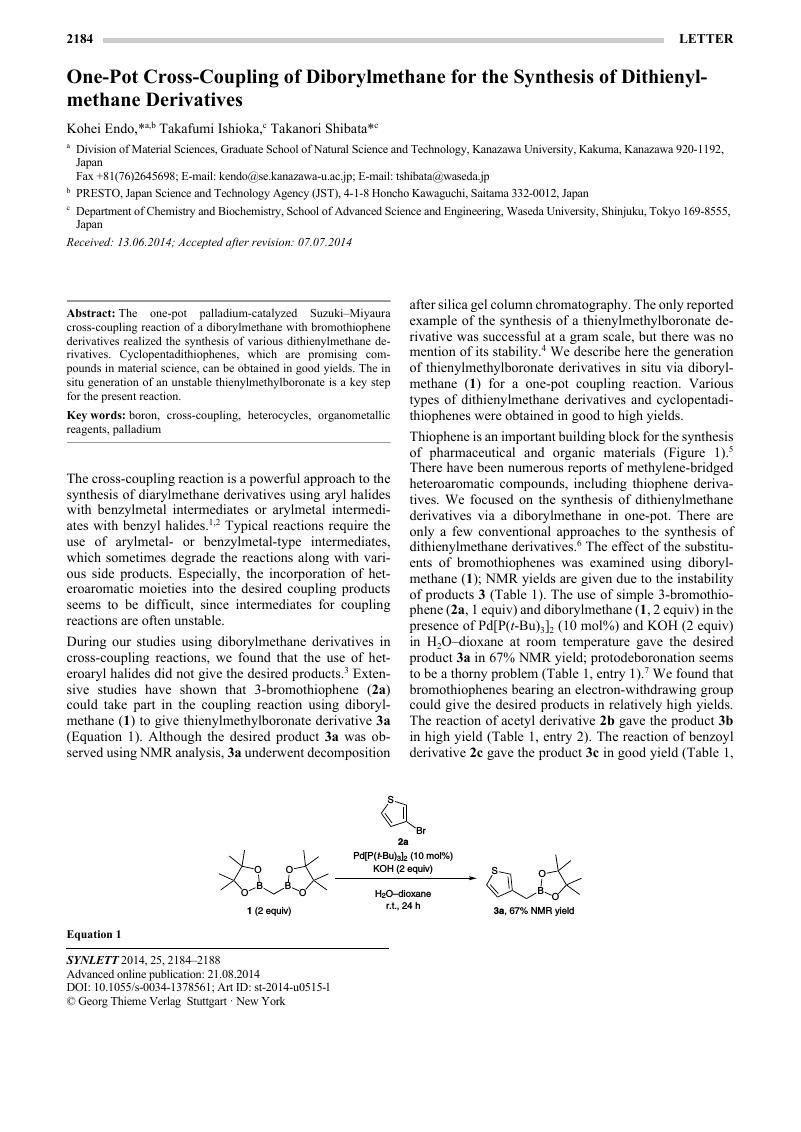

One-Pot Cross-Coupling of Diborylmethane for the Synthesis of Dithienyl­methane Derivatives

Abstract

The one-pot palladium-catalyzed Suzuki–Miyaura cross-coupling reaction of a diborylmethane with bromothiophene derivatives realized the synthesis of various dithienylmethane derivatives. Cyclopentadithiophenes, which are promising compounds in material science, can be obtained in good yields. The in situ generation of an unstable thienylmethylboronate is a key step for the present reaction.

Key words

boron - cross-coupling - heterocycles - organometallic reagents - palladium

• References


Suzuki–Miyaura cross-coupling reaction:
• 1a Miyaura N, Suzuki A. J. Chem. Soc., Chem. Commun. 1979; 866
• 1b Miyaura N, Suzuki A. Chem. Rev. 1995; 95: 2457
• 1c Chemler SR, Trauner D, Danishefsky SJ. Angew. Chem. Int. Ed. 2001; 40: 4544
• 1d Suzuki A, Brown HC. Organic Syntheses via Boranes . Vol. 3. Aldrich Chemical Co. Inc; Milwaukee: 2002
• 1e Kotha S, Lahiri K, Kashinath D. Tetrahedron 2002; 58: 9633
• 1f Bellina F, Carpita A, Rossi R. Synthesis 2004; 2419

For examples, see:
• 2a Negishi E, King AO, Okukado N. J. Org. Chem. 1977; 42: 1821
• 2b de Lang R.-J, van Hooijdonk MJ. C. M, Brandsma L, Kramer H, Seinen W. Tetrahedron 1998; 54: 2953
• 2c Flaherty A, Trunkfield A, Barton W. Org. Lett. 2005; 7: 4975
• 2d Molander GA, Maxwell DE. J. Org. Chem. 2006; 71: 9198
• 2e Ohsumi M, Kuwano R. Chem. Lett. 2008; 37: 796
• 2f Glasspoole BW, Ghozati K, Moir JW, Crudden CM. Chem. Commum. 2012; 48: 1230
• 2g Kuriyama M, Shinozawa M, Hamaguchi N, Matsuo S, Onomura O. J. Org. Chem. 2014; 79: 5921
• 3a Endo K, Ohkubo T, Hirokami M, Shibata T. J. Am. Chem. Soc. 2010; 132: 11033
• 3b Endo K, Ohkubo T, Shibata T. Org. Lett. 2011; 13: 3368
• 3c Endo K, Ohkubo T, Ishioka T, Shibata T. J. Org. Chem. 2012; 77: 4826
• 3d Endo K, Ishioka T, Ohkubo T, Shibata T. J. Org. Chem. 2012; 77: 7223
• 3e Endo K, Kurosawa F, Ukaji Y. Chem. Lett. 2013; 42: 1363

Synthesis of simple thienylmethylboronate:
• 4a Swinnen D, Morandi F. WO 2013092979 A1, 2013

Thienylalkylboronate:
• 4b Meng F, Jang H, Hoveyda AH. Chem. Eur. J. 2013; 19: 3204
• 5a Beaton G, Moree WW. J, Jovic F, Coon T, Yu J. WO2006019497 A2, 2006
• 5b Arimura A, Tanimoto N. WO 0194309 A1, 2001
• 5c Gibson GL, McCormick TM, Seferos DS. J. Am. Chem. Soc. 2012; 134: 539
• 5d Jakobsen P, Madsen P, Andersen H. Eur. J. Med. Chem. 2003; 38: 357
• 5e Murai S, Shimano M, Yamamoto H, Koyama T, Nakamura T, Ogawa M, Watanuki M, Okamoto T, Hori T. EP 0529365 A1, 1993
• 6a Kraak A, Wiersema AK, Jordens P, Wynberg H. Tetrahedron 1968; 24: 3381
• 6b Pham CV, Mark HB. Jr, Zimmer H. Synth. Commun. 1986; 16: 689
• 6c Nenajdenko VG, Baraaznenok IL, Balenkova ES. J. Org. Chem. 1998; 63: 6132
• 7 The use of Ag₂O as an additive did not improve the yield of products, see ref. 3e.
• 8 See Supporting Information.
• 9 The halogen–lithium exchange of 4h using n-BuLi and subsequent protonation gave 4g.
• 10a Jeffries AT, Moore KC, Ondeyka DM, Springsteen AW, MacDowell DW. H. J. Org. Chem. 1981; 46: 2885
• 10b Pal B, Yen W.-C, Yang J.-S, Chao C.-Y, Hung Y.-C, Lin S.-T, Chuang C.-H, Chen C.-W, Su W.-F. Macromolecules 2008; 41: 6664
• 10c Hanamura H, Haneishi R, Nemoto N. Tetrahedron Lett. 2011; 52: 4039
• 10d Lange A, Krueger H, Ecker B, Tunc AV, von Hauff E, Morana M. J. Polym. Sci., Part A: Polym. Chem. 2012; 50: 1622
