J Neurol Surg B Skull Base 2021; 82(04): 383-391
DOI: 10.1055/s-0040-1701526
Original Article

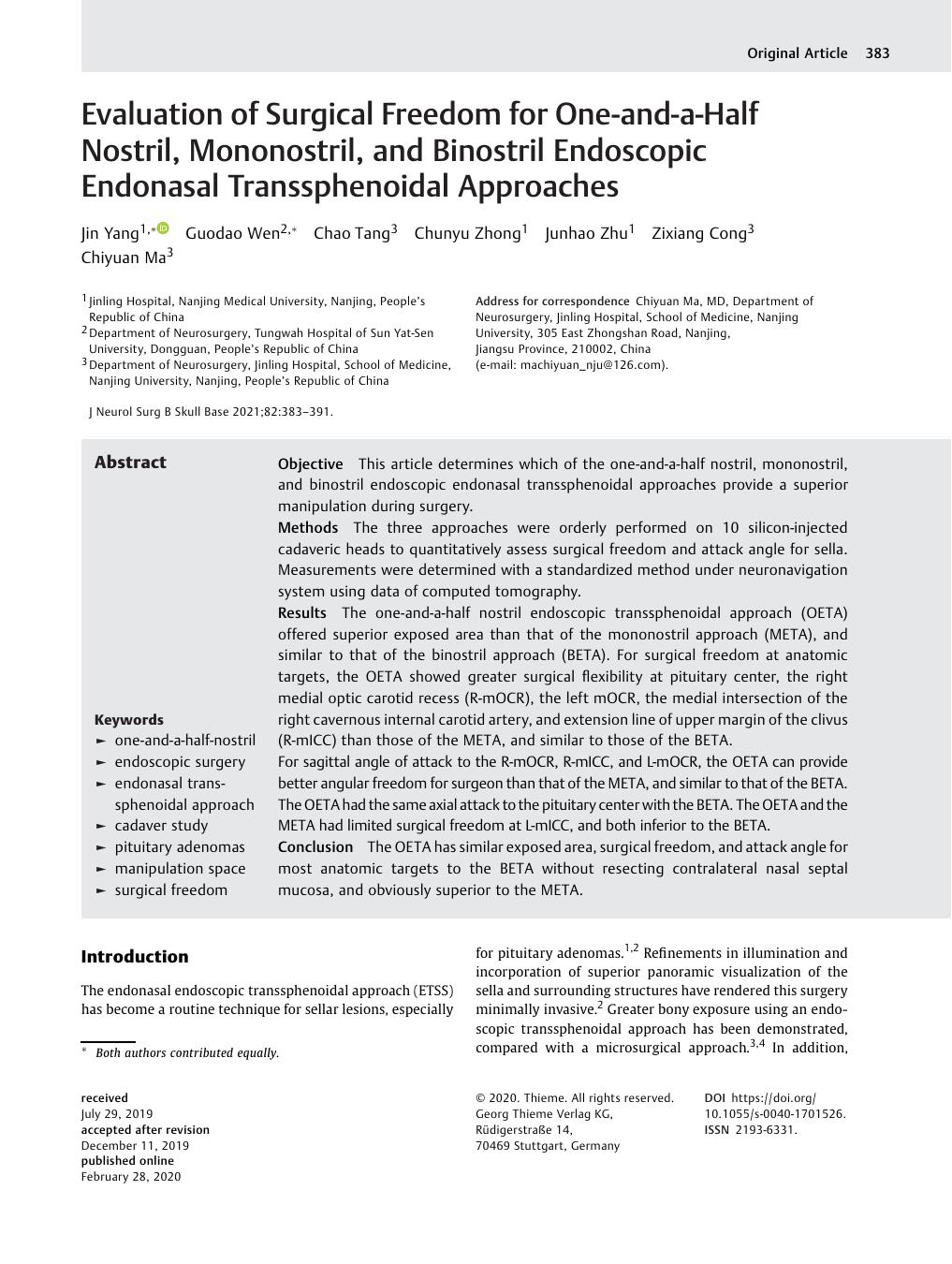

Evaluation of Surgical Freedom for One-and-a-Half Nostril, Mononostril, and Binostril Endoscopic Endonasal Transsphenoidal Approaches

Jin Yang  ‡   *
1   Jinling Hospital, Nanjing Medical University, Nanjing, People's Republic of China
,
Guodao Wen‡   *
2   Department of Neurosurgery, Tungwah Hospital of Sun Yat-Sen University, Dongguan, People's Republic of China
,
Chao Tang
3   Department of Neurosurgery, Jinling Hospital, School of Medicine, Nanjing University, Nanjing, People's Republic of China
,
Chunyu Zhong
1   Jinling Hospital, Nanjing Medical University, Nanjing, People's Republic of China
,
Junhao Zhu
1   Jinling Hospital, Nanjing Medical University, Nanjing, People's Republic of China
,
Zixiang Cong
3   Department of Neurosurgery, Jinling Hospital, School of Medicine, Nanjing University, Nanjing, People's Republic of China
,
Chiyuan Ma
3   Department of Neurosurgery, Jinling Hospital, School of Medicine, Nanjing University, Nanjing, People's Republic of China
› Author Affiliations
› Further Information
Also available at
    Permissions and Reprints

Abstract

Objective This article determines which of the one-and-a-half nostril, mononostril, and binostril endoscopic endonasal transsphenoidal approaches provide a superior manipulation during surgery.

Methods The three approaches were orderly performed on 10 silicon-injected cadaveric heads to quantitatively assess surgical freedom and attack angle for sella. Measurements were determined with a standardized method under neuronavigation system using data of computed tomography.

Results The one-and-a-half nostril endoscopic transsphenoidal approach (OETA) offered superior exposed area than that of the mononostril approach (META), and similar to that of the binostril approach (BETA). For surgical freedom at anatomic targets, the OETA showed greater surgical flexibility at pituitary center, the right medial optic carotid recess (R-mOCR), the left mOCR, the medial intersection of the right cavernous internal carotid artery, and extension line of upper margin of the clivus (R-mICC) than those of the META, and similar to those of the BETA.

For sagittal angle of attack to the R-mOCR, R-mICC, and L-mOCR, the OETA can provide better angular freedom for surgeon than that of the META, and similar to that of the BETA. The OETA had the same axial attack to the pituitary center with the BETA. The OETA and the META had limited surgical freedom at L-mICC, and both inferior to the BETA.

Conclusion The OETA has similar exposed area, surgical freedom, and attack angle for most anatomic targets to the BETA without resecting contralateral nasal septal mucosa, and obviously superior to the META.

Keywords

one-and-a-half-nostril - endoscopic surgery - endonasal trans-sphenoidal approach - cadaver study - pituitary adenomas - manipulation space - surgical freedom

* Both authors contributed equally.




Publication History

Received: 29 July 2019

Accepted: 11 December 2019

Article published online:
28 February 2020

© 2020. Thieme. All rights reserved.

Georg Thieme Verlag KG
Rüdigerstraße 14, 70469 Stuttgart, Germany



  • References

  • 1 Gao Y, Zhong C, Wang Y. et al. Endoscopic versus microscopic transsphenoidal pituitary adenoma surgery: a meta-analysis. World J Surg Oncol 2014; 12 (01) 94
    CrossrefPubMedGoogle Scholar
  • 2 Messerer M, Cossu G, George M, Daniel RT. Endoscopic endonasal trans-sphenoidal approach: minimally invasive surgery for pituitary adenomas. J Vis Exp 2018;(131). Doi: 10.3791/55896
    PubMedGoogle Scholar
  • 3 Elhadi AM, Hardesty DA, Zaidi HA. et al. Evaluation of surgical freedom for microscopic and endoscopic transsphenoidal approaches to the sella. Neurosurgery 2015; 11 (Suppl. 02) 69-78 , discussion 78–79
    PubMedGoogle Scholar
  • 4 Berhouma M, Messerer M, Jouanneau E. Occam's razor in minimally invasive pituitary surgery: tailoring the endoscopic endonasal uninostril trans-sphenoidal approach to sella turcica. Acta Neurochir (Wien) 2012; 154 (12) 2257-2265
    CrossrefPubMedGoogle Scholar
  • 5 Wilson DA, Williamson RW, Preul MC, Little AS. Comparative analysis of surgical freedom and angle of attack of two minimal-access endoscopic transmaxillary approaches to the anterolateral skull base. World Neurosurg 2014; 82 (3-4): e487-e493
    CrossrefPubMedGoogle Scholar
  • 6 Kassam A, Snyderman CH, Mintz A, Gardner P, Carrau RL. Expanded endonasal approach: the rostrocaudal axis. Part I. Crista galli to the sella turcica. Neurosurg Focus 2005; 19 (01) E3
    PubMedGoogle Scholar
  • 7 Lobo B, Heng A, Barkhoudarian G, Griffiths CF, Kelly DF. The expanding role of the endonasal endoscopic approach in pituitary and skull base surgery: a 2014 perspective. Surg Neurol Int 2015; 6: 82
    CrossrefPubMedGoogle Scholar
  • 8 Zador Z, Gnanalingham K. Endoscopic transnasal approach to the pituitary--operative technique and nuances. Br J Neurosurg 2013; 27 (06) 718-726
    CrossrefPubMedGoogle Scholar
  • 9 El-Fiki ME, Aly A, Elwany S. Binasal endoscopic approach to the sellar region: experience and outcome analysis of 80 cases. J Neurol Surg B Skull Base 2012; 73 (04) 287-291
    Article in Thieme ConnectPubMedGoogle Scholar
  • 10 Catapano D, Sloffer CA, Frank G, Pasquini E, D'Angelo VA, Lanzino G. Comparison between the microscope and endoscope in the direct endonasal extended transsphenoidal approach: anatomical study. J Neurosurg 2006; 104 (03) 419-425
    CrossrefPubMedGoogle Scholar
  • 11 Wen G, Tang C, Zhong C. et al. One-and-a-half nostril endoscopic transsphenoidal approach for pituitary adenomas-a technical report. J Otolaryngol Head Neck Surg 2016; 45 (01) 60
    CrossrefPubMedGoogle Scholar
  • 12 Elhadi AM, Almefty KK, Mendes GA. et al. Comparison of surgical freedom and area of exposure in three endoscopic transmaxillary approaches to the anterolateral cranial base. J Neurol Surg B Skull Base 2014; 75 (05) 346-353
    Article in Thieme ConnectPubMedGoogle Scholar
  • 13 Elhadi AM, Zaidi HA, Hardesty DA. et al. Malleable endoscope increases surgical freedom compared with a rigid endoscope in endoscopic endonasal approaches to the parasellar region. Neurosurgery 2014; 10 (Suppl. 03) 393-399
    PubMedGoogle Scholar
  • 14 Oertel J, Gaab MR, Tschan CA, Linsler S. Mononostril endoscopic transsphenoidal approach to sellar and peri-sellar lesions: personal experience and literature review. Br J Neurosurg 2015; 29 (04) 532-537
    CrossrefPubMedGoogle Scholar
  • 15 Peris-Celda M, Pinheiro-Neto CD, Funaki T. et al. The extended nasoseptal flap for skull base reconstruction of the clival region: an anatomical and radiological study. J Neurol Surg B Skull Base 2013; 74 (06) 369-385
    Article in Thieme ConnectPubMedGoogle Scholar
  • 16 Sigler ACD, D'Anza B, Lobo BC, Woodard TD, Recinos PF, Sindwani R. Endoscopic skull base reconstruction: an evolution of materials and methods. Otolaryngol Clin North Am 2017; 50 (03) 643-653
    CrossrefPubMedGoogle Scholar
  • 17 Mamelak AN, Carmichael J, Bonert VH, Cooper O, Melmed S. Single-surgeon fully endoscopic endonasal transsphenoidal surgery: outcomes in three-hundred consecutive cases. Pituitary 2013; 16 (03) 393-401
    CrossrefPubMedGoogle Scholar
  • 18 Hong SD, Nam DH, Seol HJ. et al. Endoscopic binostril versus transnasal transseptal microscopic pituitary surgery: sinonasal quality of life and olfactory function. Am J Rhinol Allergy 2015; 29 (03) 221-225
    CrossrefPubMedGoogle Scholar
  • 19 Little AS, Kelly D, Milligan J. et al. Predictors of sinonasal quality of life and nasal morbidity after fully endoscopic transsphenoidal surgery. J Neurosurg 2015; 122 (06) 1458-1465
    CrossrefPubMedGoogle Scholar
  • 20 Nyquist GG, Anand VK, Brown S, Singh A, Tabaee A, Schwartz TH. Middle turbinate preservation in endoscopic transsphenoidal surgery of the anterior skull base. Skull Base 2010; 20 (05) 343-347
    Article in Thieme ConnectPubMedGoogle Scholar
  • 21 de Notaris M, Prats-Galino A, Enseñat J. et al. Quantitative analysis of progressive removal of nasal structures during endoscopic suprasellar approach. Laryngoscope 2014; 124 (10) 2231-2237
    CrossrefPubMedGoogle Scholar
  • 22 Dallan I, Lenzi R, de Notaris M. et al. Quantitative study on endoscopic endonasal approach to the posterior sino-orbito-cranial interface: implications and clinical considerations. Eur Arch Otorhinolaryngol 2014; 271 (08) 2197-2203
    CrossrefPubMedGoogle Scholar
  • 23 Jane Jr JA, Starke RM, Elzoghby MA. et al. Endoscopic transsphenoidal surgery for acromegaly: remission using modern criteria, complications, and predictors of outcome. J Clin Endocrinol Metab 2011; 96 (09) 2732-2740
    CrossrefPubMedGoogle Scholar
  • 24 Wen G, Tang C, Zhong C. et al. Mononostril versus binostril endoscopic transsphenoidal approach for pituitary adenomas: a systematic review and meta-analysis. PLoS One 2016; 11 (04) e0153397
    CrossrefPubMedGoogle Scholar
  • 25 Dallapiazza RF, Grober Y, Starke RM, Laws Jr ER, Jane Jr JA. Long-term results of endonasal endoscopic transsphenoidal resection of nonfunctioning pituitary macroadenomas. Neurosurgery 2015; 76 (01) 42-52 , discussion 52–53
    CrossrefPubMedGoogle Scholar
  • 26 Starke RM, Raper DM, Payne SC, Vance ML, Oldfield EH, Jane Jr JA. Endoscopic vs microsurgical transsphenoidal surgery for acromegaly: outcomes in a concurrent series of patients using modern criteria for remission. J Clin Endocrinol Metab 2013; 98 (08) 3190-3198
    CrossrefPubMedGoogle Scholar
